Upgrade guide to 0.20

With version 0.20, zfit prepares for a more stable and user-friendly interface. This guide will help you to upgrade your code to the new version and demonstrate the most significant changes. It is meant for people who are already familiar with zfit and want to upgrade their code.

Not all changes are everywhere reflected in the docs, help with the docs is welcome as well as adding a more polished PDF. (See all issues with contributions wanted or reach out to us on Mattermost, Gitter, GitHub, or e-mail if you’re interested in becoming a contributor, from beginners to advanced).

import numpy as np
# standard imports
import zfit
import zfit.z.numpy as znp  # use this "numpy-like" for mathematical operations
import zfit_physics as zphys  # physics module, with new physics-inspired PDFs
from zfit import z

@z.function
def maximum(x, y):
    return znp.maximum(x, y)


# example usage of the numpy-like backend, use it if possible
print(f"sqrt with np:{np.sqrt(maximum(1., 2.))}, with z:{znp.sqrt(maximum(1., 2.))}")
print(f"vectorized: {np.sqrt(maximum(znp.array([1., 2.]), znp.array([3., 4.])))}")

sqrt with np:1.4142135623730951, with z:1.4142135623730951

vectorized: [1.73205081 2.        ]

Parameters

The largest news comes from parameters: the NameAlreadyTakenError is gone (!). Multiple parameters with the same name can now be created and co-exist. The only limit is: they must not exist within the same PDF/loss etc., as this would lead to ambiguities.

param1 = zfit.Parameter("param1", 1, 0, 10)
param1too = zfit.Parameter("param1", 2, 0, 10)
# no error!

Labels

Many objects, including parameters, can now have a label. This label is purely human-readable and can be used for plotting, printing, etc. It can contain arbitrary characters.

The name of objects still exists and will in a future version probably be used for identification purpose (in conjunction with serialization). Therefore, use label for human-readable names and avoid name for that purpose.

param1again = zfit.Parameter("param1", 3, 0, 10, label=r"$param_1$ [GeV$^2$]")

Space

As explained in the github discussion thread there are major improvements and changes.

• multispaces (adding two spaces, having disjoint observables) are now deprecated and will be removed. The new TruncatedPDF supports multiple spaces as limits and achieves a similar, if not better, functionality.

• the return type of Space.limit will be changed in the future. For forwards compatibility, use Space.v1.limit (or similar methods) instead of Space.limit. The old one is still available via Space.v0.limit.

• new ways of creating spaces

More examples on how to use the new spaces.

obs1 = zfit.Space("obs1", -1, 1)  # no tuple needed anymore
obs2 = zfit.Space("obs2", lower=-1, upper=1, label="observable two")

# create a space with multiple observables
obs12 = obs1 * obs2

# limits are now as one would naively expect, and area has been renamed to volume (some are tensors, but that doesn't matter: they behave like numpy arrays)
print(f"old: limits={obs12.v0.limits}")
print(f"new: limits={obs12.v1.limits}")  # we have just 1D arrays

old: limits=(array([[-1., -1.]]), array([[1., 1.]]))

new: limits=(<tf.Tensor: shape=(2,), dtype=float64, numpy=array([-1., -1.])>, <tf.Tensor: shape=(2,), dtype=float64, numpy=array([1., 1.])>)

# this allows, for example, for a more intuitive way
np.linspace(*obs12.v1.limits, num=7)

array([[-1.        , -1.        ],
       [-0.66666667, -0.66666667],
       [-0.33333333, -0.33333333],
       [ 0.        ,  0.        ],
       [ 0.33333333,  0.33333333],
       [ 0.66666667,  0.66666667],
       [ 1.        ,  1.        ]])

Data

Data handling has been significantly simplified and streamlined.

• all places (or most) take directly numpy arrays, tensors or pandas DataFrame as input, using a Data object is not necessary anymore (but convenient, as it cuts the data to the space)

• Data objects can now be created without the specific constructors (e.g. zfit.Data.from_pandas), but directly with the data. The constructors are still available for convenience and for more options.

• Data objects are now stateless and offer instead with-methods to change the data. For example, with_obs, with_weights (can be None to have without weights) etc.

• The SamplerData has been overhauld and has now a more public API including a update_data method that allows to change the data without creating a new object and without relying on a create_sampler method from a PDF.

• zfit.data.concat has been added to concatenate data objects, similar to pd.concat.

data1_obs1 = zfit.Data(np.random.uniform(0, 1, 1000), obs=obs1)
data1_obs2 = zfit.Data(np.random.uniform(0, 1, 1000), obs=obs2, label="My favourite $x$")
data2_obs1 = zfit.Data(np.random.normal(0, 1, 1000), obs=obs1)

# similar like pd.concat
data_obs12 = zfit.data.concat([data1_obs1, data1_obs2], axis="columns")
data_obs1 = zfit.data.concat([data1_obs1, data2_obs1], axis="index")

# data can be accessed with "obs" directly
data_obs12["obs1"]  # returns a numpy array shape (n,)
data_obs12[["obs2", "obs1"]]  # returns a numpy array shape (n, 2)

<tf.Tensor: shape=(1000, 2), dtype=float64, numpy=
array([[0.52898026, 0.64015459],
       [0.86924669, 0.11586189],
       [0.25112598, 0.03000006],
       ...,
       [0.62670663, 0.50412456],
       [0.07520825, 0.70825316],
       [0.63284057, 0.07414565]])>

Binning

Using a binned space has now the effect of creating a binned version. This happens for Data and PDF objects.

obs1_binned = obs1.with_binning(12)
data_binned = zfit.Data(np.random.normal(0, 0.2, 1000), obs=obs1_binned)

PDFs

• there are a plethora of new PDFs, mostly covering physics inspired use-cases. Amongst the interesting ones are a GeneralizedCB, a more general version of the DoubleCB that should be preferred in the future. A Voigt profile is available, Bernstein polynomials, QGauss, GaussExpTail, etc. and in zfit-physics HEP specific PDFS , from CMSShape, Cruijff, Novosibirsk and more.

• the TruncatedPDF has been added to allow for a more flexible way of truncating a PDF. Any PDF can be converted to a truncated version using to_truncated (which, by default, truncates to the limits of the space).

• PDFs have a new plot method that allows for a quick plotting of the PDF (it takes an “obs” argument that allows to simply project it!). This is still experimental and may changes, the main purpose is to allow for a quick check of the PDF in interactive environments. The function is fully compatible with matplotlib and takes an ax argument, it also allows to pass through any keyword arguments to the plotting function.

# all the new PDFs
print(zfit.pdf.__all__)

['BasePDF', 'BaseFunctor', 'Exponential', 'Voigt', 'CrystalBall', 'DoubleCB', 'GeneralizedCB', 'GaussExpTail', 'GeneralizedGaussExpTail', 'Gauss', 'BifurGauss', 'Uniform', 'TruncatedGauss', 'WrapDistribution', 'Cauchy', 'Poisson', 'QGauss', 'ChiSquared', 'StudentT', 'Gamma', 'Bernstein', 'Chebyshev', 'Legendre', 'Chebyshev2', 'Hermite', 'Laguerre', 'RecursivePolynomial', 'ProductPDF', 'SumPDF', 'GaussianKDE1DimV1', 'KDE1DimGrid', 'KDE1DimExact', 'KDE1DimFFT', 'KDE1DimISJ', 'FFTConvPDFV1', 'ConditionalPDFV1', 'ZPDF', 'SimplePDF', 'SimpleFunctorPDF', 'UnbinnedFromBinnedPDF', 'BinnedFromUnbinnedPDF', 'HistogramPDF', 'SplineMorphingPDF', 'BinwiseScaleModifier', 'BinnedSumPDF', 'SplinePDF', 'TruncatedPDF', 'LogNormal', 'CachedPDF']

print(zphys.pdf.__all__)

['Argus', 'RelativisticBreitWigner', 'CMSShape', 'Cruijff', 'ErfExp', 'Novosibirsk', 'Tsallis']

# create a PDF
pdf = zfit.pdf.Gauss(
    mu=zfit.Parameter("mu", 1.2), sigma=param1again, obs=obs1, extended=1000
)  # using an extended PDF, the truncated pdf automatically rescales
pdf.plot.plotpdf()  # quick plot

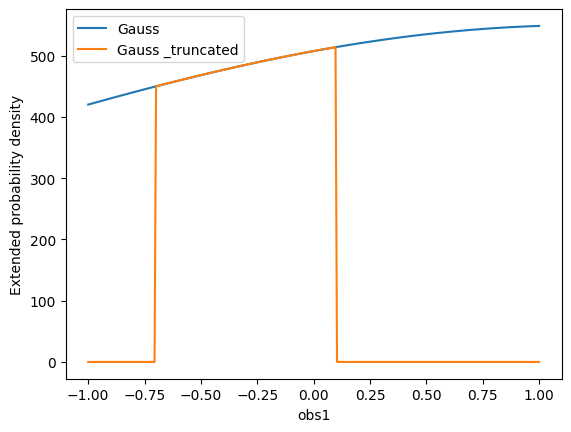

# truncate it
pdf_truncated = pdf.to_truncated(limits=(-0.7, 0.1))
pdf_truncated.plot.plotpdf()

<Axes: xlabel='obs1', ylabel='Extended probability density'>

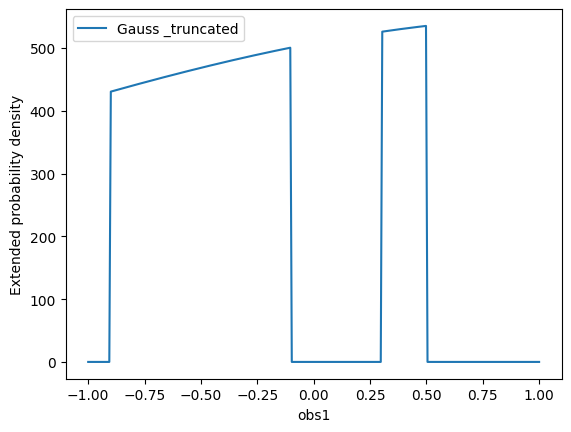

# a truncated PDF can also have multiple limits, replacing the MultiSpace concept
range1 = zfit.Space('obs1', -0.9, -0.1, label="lower range")  # an excellent use-case of a label
range2 = zfit.Space('obs1', 0.3, 0.5, label="upper range")
pdf_disjoint = pdf.to_truncated(limits=(range1, range2))
pdf_disjoint.plot.plotpdf()

<Axes: xlabel='obs1', ylabel='Extended probability density'>

# binned pdfs from space work like the data
gauss_binned = zfit.pdf.Gauss(mu=zfit.Parameter("mu", 2.5), sigma=param1again, obs=obs1_binned, extended=1000)

# as mentioned before, PDFs can be evaluated directly on numpy arrays or pandas DataFrames
pdf.pdf(data_obs1.to_pandas())

<tf.Tensor: shape=(1683,), dtype=float64, numpy=
array([0.54058923, 0.51531316, 0.50980195, ..., 0.53701248, 0.49380021,
       0.43067725])>

Loss and minimizer

They stay mostly the same (apart from improvements behind the scenes and bugfixes). Losses take now directly the data and the model, without the need of a Data object (if the data is already cut to the space).

To use the automatic gradient, set gradient="zfit" in the minimizer. This can speed up the minimization for larger fits.

Updated params

The minimizer currently updates the parameter default values after each minimization. To keep this behavior, add update_params() call after the minimization.

(experimentally, the update can be disabled with zfit.run.experimental_disable_param_update(True), this will probably be the default in the future. Pay attention that using this experimental features most likely breaks current scripts. Feedback on this new feature is highly welcome!)

loss = zfit.loss.ExtendedUnbinnedNLL(model=pdf, data=data2_obs1.to_pandas())
minimizer = zfit.minimize.Minuit(
    gradient="zfit"
)  # to use the automatic gradient -> can fail, but can speed up the minimization

result = minimizer.minimize(loss).update_params()

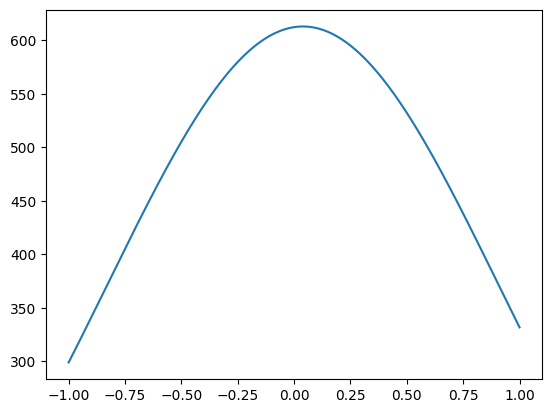

pdf.plot.plotpdf(full=False)  # plot only the pdf, no labels

<Axes: >

Result

The result has more usage for setting parameters, the update_params method is now available and can be used to set the parameters to the minimum as seen above.

It can also be used in a context manager to temporarily set the parameters to the minimum and restore them afterwards.

param1again.set_value(1.5)
with result:
    print(f"param1 set temporarily to {param1again}")
print(f"param1 is now {param1again} again")

param1 set temporarily to <zfit.Parameter 'param1' floating=True value=1.009>

param1 is now <zfit.Parameter 'param1' floating=True value=1.5> again

# or to set the parameters to the minimum
zfit.param.set_values(result)  # supports also a dict of {param: value}!
print(param1again)

<zfit.Parameter 'param1' floating=True value=1.009>

Serialization

The result can now be pickled like any object in zfit! (this was not possible before, only after calling freeze on the result)

This works directly using dill (a library that extends pickle), but can fail if the garbage collector is not run. Therefore, zfit provides a slightly modified dill that can work as a drop-in replacement.

The objects can be saved and loaded again and used as before. Ideal to store the minimum of a fit and use it later for statistical treatments, plotting, etc.

result_serialized = zfit.dill.dumps(result)
result_deserialized = zfit.dill.loads(result_serialized)

# the result can be used as before
result_deserialized.hesse()  # the default name is now "hesse" and not "minuit_hesse"
result_deserialized.errors()  # the default name is now "errors" and not "minuit_minos"
print(result_deserialized)

FitResult

 of
<ExtendedUnbinnedNLL model=[<zfit.<class 'zfit.models.dist_tfp.Gauss'>  params=[mu, param1]] data=[<zfit.Data: Data obs=('obs1',) shape=(683, 1)>] constraints=[]>
with
<Minuit Minuit tol=0.001>

╒═════════╤═════════════╤══════════════════╤═════════╤══════════════════════════════╕
│  valid  │  converged  │  param at limit  │   edm   │   approx. fmin (full | opt.) │
╞═════════╪═════════════╪══════════════════╪═════════╪══════════════════════════════╡
│

True

   │    True

     │      False

       │ 0.00014 │         -3251.37 |  10012.38 │
╘═════════╧═════════════╧══════════════════╧═════════╧══════════════════════════════╛

Parameters

name      value  (rounded)        hesse               errors    at limit
------  ------------------  -----------  -------------------  ----------
mu               0.0109687  +/-   0.072  -  0.073   +  0.077       False

param1             1.00927  +/-    0.14  -   0.12   +   0.18       False

Parameters as arguments

The values of the parameters can now be directly used as arguments in functions of PDFs/loss. Methods in the pdf also take the parameters as arguments.

The name of the argument has to match the name of the parameter given in initialization (or can also be the parameter itself).

from matplotlib import pyplot as plt

x = znp.linspace(*obs1.v1.limits, 1000)

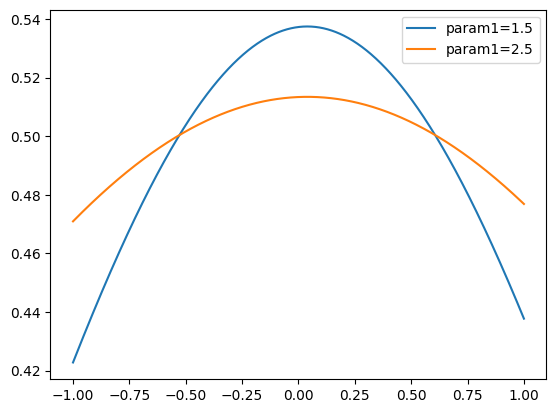

plt.plot(x, pdf.pdf(x, params={"param1": 1.5}), label="param1=1.5")
plt.plot(x, pdf.pdf(x, params={param1again: 2.5}), label="param1=2.5")
plt.legend()

<matplotlib.legend.Legend at 0x7fa87558db90>

import tqdm

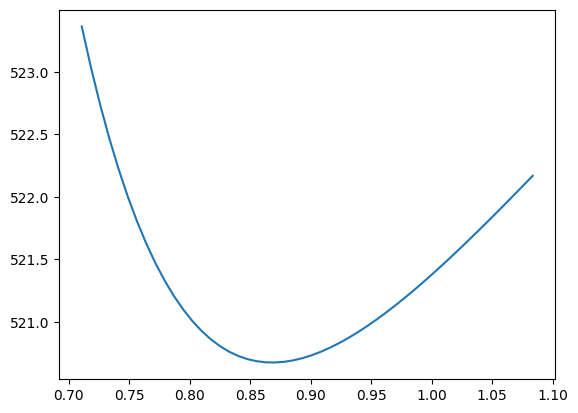

# similar for the loss
param1dict = result_deserialized.params[param1again]
param1min = param1dict["value"]
lower, upper = param1dict["errors"]["lower"], param1dict["errors"]["upper"]
x = np.linspace(param1min + 2 * lower, param1min + 2 * upper, 50)
y = []
param1again.floating = False  # not minimized
for x_i in tqdm.tqdm(x):
    param1again.set_value(x_i)
    minimizer.minimize(loss).update_params()  # set nuisance parameters to minimum
    y.append(loss.value())
plt.plot(x, y)

[<matplotlib.lines.Line2D at 0x7fa87541d250>]

# a result can also be used as argument for PDFs or, here, for losses
loss_before = loss.value()
loss_min = loss.value(params=result_deserialized)  # evaluate at minimum
print(f"loss before (random from before): {loss_before:.7} minimum value: {loss_min:.7} vs {result_deserialized.fmin:.7}")

loss before (random from before): -3250.016 minimum value: -3251.374 vs -3251.374

# creating a PDF looks also different, but here we use the name of the parametrization and the axis (integers)


class MyGauss2D(zfit.pdf.ZPDF):
    _PARAMS = ("mu", "sigma")
    _N_OBS = 2

    @zfit.supports()  # this allows the params magic
    def _unnormalized_pdf(self, x, params):
        x0 = x[0]  # this means "axis 0"
        x1 = x[1]  # this means "axis 1"
        mu = params["mu"]
        sigma = params["sigma"]
        return znp.exp(-0.5 * ((x0 - mu) / sigma) ** 2) * x1  # fake, just for demonstration

gauss2D = MyGauss2D(mu=0.8, sigma=param1again, obs=obs12, label="2D Gaussian$^2$")

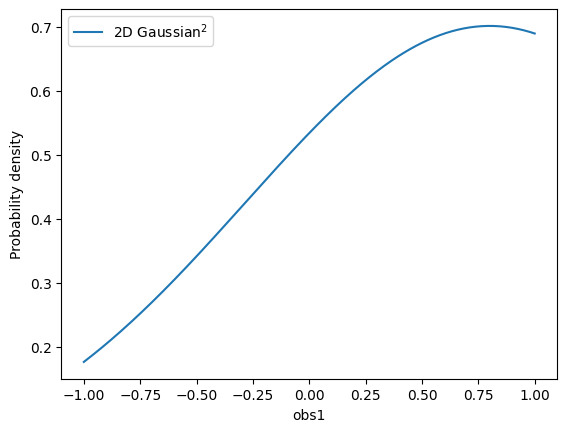

gauss2D.plot.plotpdf(obs="obs1")  # we can project the 2D pdf to 1D

<Axes: xlabel='obs1', ylabel='Probability density'>
